MDCS using a local MATLAB client¶

To submit jobs through a local MATLAB client in Apolo II or Cronos using SLURM follow next steps to got the integration:

Integration scripts ¶

Add the MATLAB integration scripts to your MATLAB PATH by placing the integration scripts into a directory in your PC. (matlab-apolo.zip).

e.g. $HOME/Documents/matlab-integration

Linux

mkdir $HOME/Documents/matlab-integration
mv path-to-file/matlab-apolo-R2019a.zip $HOME/matlab-integration/
cd $HOME/Documents/matlab-integration
unzip matlab-apolo-R2019a.zip
rm matlab-apolo-R2019a.zip

Open your MATLAB client to configure it.

Note

MATLAB client is installed in a system directory, we strongly suggest to open it with admin privileges, it is only necessary the first time to configure it.

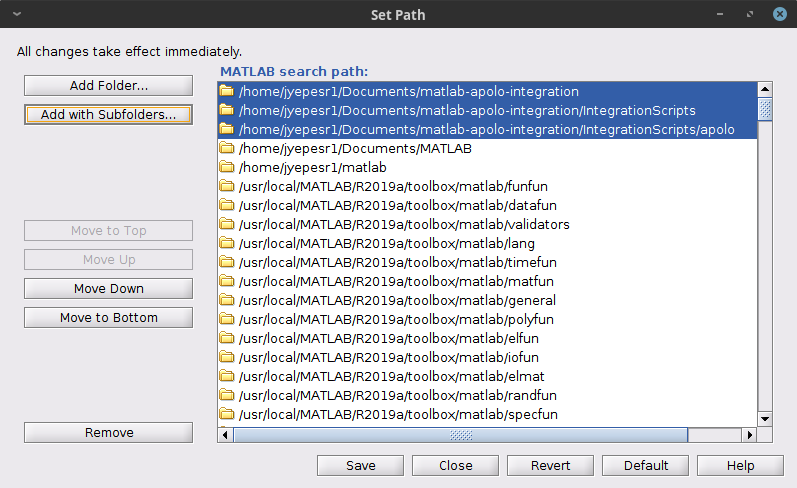

Add the integrations scripts to the MATLAB PATH
- Press the “Set Path” button
- Press the “Add with Subfolders” button and choose the directories where you unzip the integrations scripts (Apolo II and Cronos) and finally press the “Save” button:
  - $HOME/matlab-integration/EAFIT.nonshared.R2019a

Configuring cluster profiles ¶

Configure MATLAB to run parallel jobs on your cluster by calling configCluster. It will prompt you for a cluster selection if the user wants to use Apolo or Cronos nodes.
Modify the cluster profile through a variable definition c = parcluster.
Set the custom options as you need.

TimeLimit → (Mandatory) Set a limit on the total run time of the job allocation (more info).
- e.g. c.AdditionalProperties.TimeLimit = ‘3-10:00:00’;
AccountName → Change the default user account on Slurm.
- e.g. c.AdditionalProperties.AccountName = ‘apolo’;
ClusterHost → Another way to change the cluster hostname to submit jobs.
- e.g. c.AdditionalProperties.ClusterHost = ‘apolo.eafit.edu.co’;
EmailAddress → Get all job notifications by e-mail.
- e.g. c.AdditionalProperties.EmailAddress = ‘apolo@eafit.edu.co’;
EmailType → Get only the desired notifications based on sbatch options.
- e.g. c.AdditionalProperties.EmailType = ‘END,TIME_LIMIT_50’;
MemUsage → Total amount of memory per machine (more info).
- e.g. c.AdditionalProperties.MemUsage = ‘5G’;
NumGpus → Number of GPUs to use in a job.
- e.g. c.AdditionalProperties.NumGpus = 2;
Note

The maximum value for NumGpus is four, also if you select this option you should use the ‘accel’ partition on Apolo II.
Partition → Select the desire partition to submit jobs (by default longjobs partition will be used)
- e.g. c.AdditionalProperties.Partition = ‘bigmem’;
Reservation → Submit a job into a reservation (more info).
- e.g. c.AdditionalProperties.Reservation = ‘reservationName’;
AdditionalSubmitArgs → Any valid sbatch parameter (raw) (more info)
- e.g. c.AdditionalProperties.AdditionalSubmitArgs = ‘–no-requeue’;

Save the current profile to avoid setting the properties each time.

>> configCluster
>> c = parcluster;
>> c.AdditionalProperties.TimeLimit = '1:00:00';
>> c.AdditionalProperties.Partition = 'longjobs';
>> c.saveProfile

>> % e.g. to set the NumGpus, TimeLimit and Partition
>> c = parcluster();
>> c.AdditionalProperties.TimeLimit = '1:00:00';
>> c.AdditionalProperties.Partition = 'accel';
>> c.AdditionalProperties.NumGpus = 2;
>> c.saveProfile

Submitting jobs ¶

General steps¶

Load ‘apolo R2019a’ cluster profile and load the desired properties to submit a job.
```
>> c = parcluster('apolo R2019a');
```

Note

There was no necessary to set the additional properties because they have been already set when the profile was saved the first time with c.saveProfile.

To see the values of the current configuration options, call the specific AdditionalProperties method.
```
>> % To view current properties
>> c.AdditionalProperties
```

To clear a value, assign the property an empty value ('', [], or false).

>> % Turn off email notifications
>> c.AdditionalProperties.EmailAddress = '';

If you have to cancel a job (queued or running) type.
```
>> j.cancel
```
Delete a job after results are no longer needed.
```
>> j.delete
```

Serial jobs¶

Use the batch command to submit asynchronous jobs to the cluster. The batch command will return a job object which is used to access the output of the submitted job.

(See the MATLAB documentation for more help on batch.)

serial_example.m¶

function t = serial_example(n)

t0 = tic;
A = 500;
a = zeros(n);

for i = 1:n
    a(i) = max(abs(eig(rand(A))));
end

t = toc(t0);

end

>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Submit job to query where MATLAB is running on the cluster (script)
>> j = c.batch(@serial_example, 1, {1000});

>> % Query job for state
>> j.State

>> % Load results
>> j.fetchOutputs{:}

>> % Delete the job after results are no longer needed
>> j.delete

To retrieve a list of currently running or completed jobs, call parcluster to retrieve the cluster object. The cluster object stores an array of jobs that were run, are running, or are queued to run. This allows us to fetch the results of completed jobs. Retrieve and view the list of jobs as shown below.
```
>> c = parcluster('apolo R2019a');
>> jobs = c.Jobs
```
Once we have identified the job we want, we can retrieve the results as we have done previously. fetchOutputs is used to retrieve function output arguments; if using batch with a script, use load instead.

Data that has been written to files on the cluster needs be retrieved directly from the file system. To view results of a previously completed job:
```
>> % Get a handle on job with ID 2
>> j2 = c.Jobs(2);
>> j2.fetchOutputs{:}
```
Note

You can view a list of your jobs, as well as their IDs, using the above c.Jobs command.

Another example using a MATLAB script.

serial_example_script.m¶

t0 = tic;
A = 500;
a = zeros(100);
fileID = fopen('/tmp/time.txt','wt');
for i = 1:100
    a(i) = max(abs(eig(rand(A))));
end
t = toc(t0);
fprintf(fileID, '%6.4f\n', t);
fclose(fileID);

Job submission

>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Submit job to query where MATLAB is running on the cluster (script)
>> j = c.batch('serial_example_script');

>> % Query job for state
>> j.State

>> %Load results into the client workspace
>> j.load

>> % Delete the job after results are no longer needed
>> j.delete

Another example using a MATLAB script that supports GPU.

gpu_script.m¶

maxIterations = 500;
gridSize = 1000;
xlim = [-0.748766713922161, -0.748766707771757];
ylim = [ 0.123640844894862,  0.123640851045266];

% Setup
t = tic();
x = gpuArray.linspace( xlim(1), xlim(2), gridSize );
y = gpuArray.linspace( ylim(1), ylim(2), gridSize );
[xGrid,yGrid] = meshgrid( x, y );
z0 = complex( xGrid, yGrid );
count = ones( size(z0), 'gpuArray' );

% Calculate
z = z0;
for n = 0:maxIterations
          z = z.*z + z0;
inside = abs( z )<=2;
count = count + inside;
end
count = log( count );

% Show
count = gather( count ); % Fetch the data back from the GPU
naiveGPUTime = toc( t );
fig = gcf;
fig = figure('visible', 'off');
fig.Position = [200 200 600 600];
imagesc( x, y, count );
colormap( [jet();flipud( jet() );0 0 0] );
axis off;
title( sprintf( '%1.2fsecs (GPU)', naiveGPUTime ) );
saveas(gcf,'/tmp/GPU.png');

Job submission

>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Submit job to query where MATLAB is running on the cluster (script)
>> j = c.batch('gpu_script');

>> % Query job for state
>> j.State

Another example using Simulink via MATLAB.

parsim_test_script.m¶

% Example running a Simulink model.

% The Simulink model is called |parsim_test.slx| and it *must be* in
% the cluster.

% Number of simulations
numSims = 10;
W = zeros(1,numSims);

% Changing to the |parsim_test.slx| path
cd ~/tests/simulink

% Create an array of |SimulationInput| objects and specify the argument value
% for each simulation. The variable |x| is the input variable in the Simulink
% model.
for x = 1:numSims
  simIn(x) = Simulink.SimulationInput('parsim_test');
  simIn(x) = setBlockParameter(simIn(x), 'parsim_test/Transfer Fcn', 'Denominator', num2str(x));
end

% Running the simulations.
simOut = parsim(simIn);

% The variable |y| is the output variable in the Simulink model.
for x = 1:numSims
  W(1,x) = max(simOut(x).get('y'));
end

save('~/output_file.mat','W');

parsim_test.slx (Simulink model)

Job submission

>> % Get a handle to the cluster
>> c = parcluster('apolo remote R2018a');

>> % Submit job to query where MATLAB is running on the cluster (script)
>> j = c.batch('parsim_test_script');

>> % Query job for state
>> j.State

>> % Load data to client workspace
>> j.load

Parallel or distributed jobs¶

Users can also submit parallel or distributed workflows with batch command. Let’s use the following example for a parallel job.

parallel_example.m¶

function t = parallel_example(n)

t0 = tic;
A = 500;
a = zeros(n);
parfor i = 1:n
  a(i) = max(abs(eig(rand(A))));
end
t = toc(t0);
end

We will use the batch command again, but since we are running a parallel job, we will also specify a MATLAB pool.
```
>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Submit a batch pool job using 4 workers
>> j = c.batch(@parallel_example, 1, {1000}, 'Pool', 4);

>> % View current job status
>> j.State

>> % Fetch the results after a finished state is retrieved
>> j.fetchOutputs{:}
ans =
   41.7692
```
- The job ran in 41.7692 seconds using 4 workers.
Note

Note that these jobs will always request N+1 CPU cores, since one worker is required to manage the batch job and pool of workers. For example, a job that needs eight workers will consume nine CPU cores.

Note

For some applications, there will be a diminishing return when allocating too many workers, as the overhead may exceed computation time (communication).

We will run the same simulation, but increase the pool size. This time, to retrieve the results later, we will keep track of the job ID.

>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Submit a batch pool job using 8 workers
>> j = c.batch(@parallel_example, 1, {1000}, ‘Pool’, 8);

>> % Get the job ID
>> id = j.ID
Id =
4
>> % Clear workspace, as though we quit MATLAB
>> clear

Once we have a handle to the cluster, we will call the findJob method to search for the job with the specified job ID.

>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Find the old job
>> j = c.findJob('ID', 4);

>> % Retrieve the state of the job
>> j.State
ans
finished
>> % Fetch the results
>> j.fetchOutputs{:}
ans =
22.2082

The job now runs 22.2082 seconds using 8 workers. Run code with different number of workers to determine the ideal number to use.

Another example using a parallel script.

parallel_example_script.m¶

n = 1000;
t0 = tic;
A = 500;
a = zeros(n);
fileID = fopen('/tmp/time.txt','wt');

parfor i = 1:n
  a(i) = max(abs(eig(rand(A))));
end

t = toc(t0);
fprintf(fileID, '%6.4f\n', t);
fclose(fileID);

>> % Get a handle to the cluster
>> c = parcluster('apolo R2019a');

>> % Submit job to query where MATLAB is running on the cluster (script)
>> j = c.batch('parallel_example_script', 'Pool', 8);

>> % Query job for state
>> j.State

>> %Load results
>> j.load

>> % Delete the job after results are no longer needed
>> j.delete

Debugging ¶

If a serial job produces an error, we can call the getDebugLog method to view the error log file using j.Tasks(1). Additionally when submitting independent jobs, with multiple tasks, you will have to specify the task number.
```
>> % If necessary, retrieve output/error log file
>> j.Parent.getDebugLog(j.Tasks(1))
```

For pool jobs, do not diference into the job object.

>> % If necessary, retrieve output/error log file
>> j.Parent.getDebugLog(j)
>> % or
>> c.getDebugLog(j)

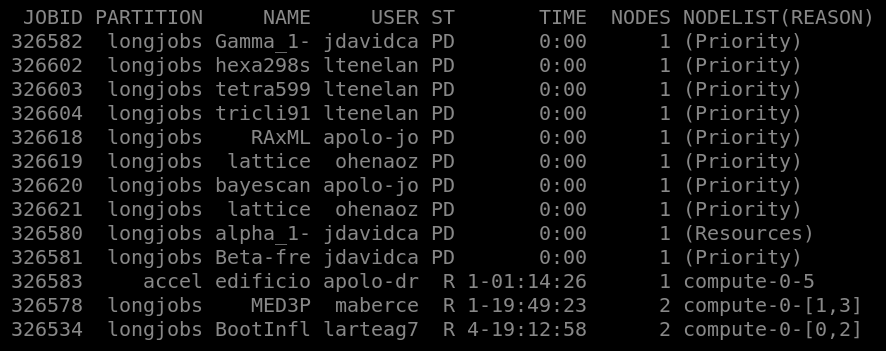

To get information about the job in SLURM, we can consult the scheduler ID by calling schedID.
```
>> schedID(j)
   ans =
      25539
```

MDCS using cluster’s MATLAB client¶

Submitting jobs from within MATLAB client on the cluster ¶

General steps¶

Connect to Apolo II or Cronos via SSH.

# Without graphical user interface
ssh username@[cronos,apolo].eafit.edu.co
# or with graphical user interface
ssh -X username@[cronos,apolo].eafit.edu.co

Load MATLAB modufile.
```
module load matlab/r2019a
```
Run MATLAB client
```
matlab
```

First time, you have to define the cluster profile running the following command.

>> configCluster

  >> % Must set TimeLimit before submitting jobs to
          >> % the cluster.

          >> % i.e. to set the TimeLimit
          >> c = parcluster('cluster R2019a');
          >> c.AdditionalProperties.TimeLimit = '1:00:00';
          >> c.saveProfile

Warning

The configCluster command should be run only the very first time you configure your MATLAB client. It is NOT necessary to run the command each time.

Load the cluster profile to submit a job (MATLAB GUI or command line).

>> % Must set TimeLimit before submitting jobs to Apolo II or
>> % Cronos cluster

>> c = parcluster()

  c =

   Generic Cluster

      Properties:

                     Profile: cluster R2019a
                    Modified: false
                        Host: apolo.eafit.edu.co
                  NumWorkers: 96
                  NumThreads: 1

          JobStorageLocation: /home/<user>/MdcsDataLocation/cluster/R2019a/local
           ClusterMatlabRoot: /share/common-apps/matlab/r2019a
             OperatingSystem: unix

     RequiresOnlineLicensing: false
   IntegrationScriptsLocation: /share/common-apps/matlab/r2019a/toolbox/local/cluster.local/IntegrationScripts/cluster
        AdditionalProperties: List properties

      Associated Jobs:

              Number Pending: 0
               Number Queued: 0
              Number Running: 0
             Number Finished: 0

To see the values of the current configuration options, call the specific AdditionalProperties method.

>> % To view current properties
>> c.AdditionalProperties

  ans =

    AdditionalProperties with properties:

               AccountName: ''
      AdditionalSubmitArgs: ''
              EmailAddress: ''
                 EmailType: ''
               EnableDebug: 0
                  MemUsage: ''
                 Partition: ''
              ProcsPerNode: 0
               Reservation: ''
                 TimeLimit: ''
                   UseSmpd: 0

To clear a value, assign the property an empty value ('', [], or false).

>> % Turn off email notifications
>> c.AdditionalProperties.EmailAddress = '';

Submitting jobs¶

Note

Users can submit serial, parallel or distributed jobs with batch command as the previous examples.

Submitting jobs directly through SLURM ¶

MDCS jobs could be submitted directly from the Unix command line through SLURM.

For this, in addition to the MATLAB source, one needs to prepare a MATLAB submission script with the job specifications.

An example is shown below:

matlab_batch.m¶

%==========================================================
% MATLAB job submission script: matlab_batch.m
%==========================================================

workers = str2num(getenv('SLURM_NTASKS'));
c = parcluster('apolo');
c.AdditionalProperties.TimeLimit = '1:00:00';
c.AdditionalProperties.Partition = 'longjobs';
j = c.batch(@parallel_example_slurm, 1, {1000}, 'pool', workers);
exit;

parallel_example_slurm.m¶

function t = parallel_example_slurm(n)

t0 = tic;
A = 500;
a = zeros(n);

parfor i = 1:n
  a(i) = max(abs(eig(rand(A))));
end

t = toc(t0);
save prueba.txt t -ascii

end

It is submitted to the queue with help of the following SLURM batch-job submission script:

matlab.slurm¶

#!/bin/bash

#SBATCH -J test_matlab
#SBATCH -o test_matlab-%j.out
#SBATCH -e test_matlab-%j.err
#SBATCH -p longjobs
#SBATCH -n 8
#SBATCH -t 20:00

module load matlab/r2018a

matlab -nosplash -nodesktop -r "matlab_batch"

Job is submitted as usual with:
```
sbatch matlab.slurm
```
Note

This scheme dispatches 2 jobs - one serial that spawns the actual MDCS parallel jobs, and another, the actual parallel job.
Once submitted, the job can be monitored and managed directly through SLURM
- squeue command output
After the job completes, one can fetch results and delete job object from within MATLAB client on the cluster. If program writes directly to disk fetching is not necessary.
```
>> c = parcluster('apolo');
>> jobs = c.Jobs
>> j = c.Jobs(7);
>> j.fetchOutputs{:};
>> j.delete;
```

MATLAB directly on the cluster ¶

Next steps describes how to use MATLAB and its toolboxes without MDCS (workers) toolbox, but this way has next pros and cons.

Pros
- No workers limitations
Cons
- No distributed jobs (Only parallel or serial jobs)

Unattended job ¶

To run unattended jobs on the cluster follow next steps:

Connect to Apolo II or Cronos via SSH.
```
ssh username@cronos.eafit.edu.co
```
Enter to the matlab directory project.
```
cd ~/test/matlab/slurm
```

Create a SLURM batch-job submission script

slurm.sh¶

#!/bin/bash

#SBATCH -J test_matlab
#SBATCH -o test_matlab-%j.out
#SBATCH -e test_matlab-%j.err
#SBATCH -p bigmem
#SBATCH -n 8
#SBATCH -t 20:00

module load matlab/r2018a

matlab -nosplash -nodesktop < parallel_example_unattended.m

parallel_example_unattended.m¶

p = parpool(str2num(getenv('SLURM_NTASKS')));

t0 = tic;
A = 500;
a = zeros(1000);
parfor i = 1:1000
  a(i) = max(abs(eig(rand(A))));
end
t = toc(t0)
exit

Submit the job.

sbatch slurm.sh

Check the stdout file (test_matlab_xxxx.out).

                      < M A T L A B (R) >
            Copyright 1984-2019 The MathWorks, Inc.
       R2019a Update 3 (9.6.0.1135713) 64-bit (glnxa64)
                         June 5, 2019

To get started, type doc.
For product information, visit www.mathworks.com.

>> Starting parallel pool (parpool) using the 'local' profile ...
connected to 8 workers.

t =

  22.5327

Interactive job (No GUI)¶

If it is necessary the user can run interactive jobs following next steps:

Connect to Apolo II or Cronos via SSH.
```
ssh username@apolo.eafit.edu.co
```

Submit a interactive request to the resource manager

srun -N 1 --ntasks-per-node=2 -t 20:00 -p debug --pty bash
# If resources are available you get immediately a shell in a slave node
# e.g. compute-0-6
module load matlab/r2019a
matlab

                            < M A T L A B (R) >
                  Copyright 1984-2019 The MathWorks, Inc.
             R2019a Update 3 (9.6.0.1135713) 64-bit (glnxa64)
                               June 5, 2019

To get started, type doc.
For product information, visit www.mathworks.com.

 >> p = parpool(str2num(getenv('SLURM_NTASKS')));
 Starting parallel pool (parpool) using the 'local' profile ...
 >> p.NumWorkers

 ans =

      2

Note

At this point you have an interactive MATLAB session through the resource manager (SLURM), giving you the possibility to test and check different MATLAB features.

To finish this job, you have to close the MATLAB session and then the bash session granted in the slave node.

References ¶

Parallel Computing Toolbox
MATLAB Distributed Computing Server
“Portions of our documentation contain content originally created by Harvard FAS Research Computing and adapted by us under the Creative Commons Attribution-NonCommercial 4.0 International License. More information: https://rc.fas.harvard.edu/about/attribution/”
