Tested on (Requirements)

  • License Manager Server: Virtual machine (CentOS 7 Minimal (x86_64))
  • OS base: CentOS (x86_64) \(\boldsymbol{\ge}\) 6.6
  • MPI: Intel MPI \(\boldsymbol{\ge}\) 19.0.4 (Mandatory to use with Infiniband networks)
  • Scheduler: SLURM \(\boldsymbol{\ge}\) 18.08.1
  • Application: MATLAB Client (Optional)
  • Extra Libraries:

License Manager

The License Manager provides a network license support to allow the usage of the different MATLAB features on the clusters (Apolo II and Cronos).

In this case we have two types of licenses, the first one is for the MATLAB Parallel Server and the second one for MATLAB client with all the toolboxes available.

Next steps will describe the installation and configuration process for the MLM (MATLAB License Manager based on FlexLM [1]):

  1. Get the online installer using your MATLAB account.

  2. Send the installation package to the License Manager server (VM).

    scp matlab_R2019a_glnxa64.zip root@<FQDN>:$installer_path

  3. Follow the next steps to run the MATLAB installer.

    1. Unzip and access the installer files.

      ssh -X root@<FQDN>
cd $installer_path$
mkdir matlab-R2019a
mv matlab_R2019a_glnxa64.zip matlab-R2019a
cd matlab-R2019a
unzip matlab_R2019a_glnxa64.zip

    2. Execute the installer.

      ./install

      Note

      Troubleshooting

    3. Select the installation method (by MATLAB account).

      ../../../../_images/MathWorks_Installer_1.png

    4. Accept license agreement (yes).

      ../../../../_images/License_Agreement_2.png

    5. Login (username and password).

      ../../../../_images/Log_in_Mathworks_3.png

    6. Select license (Parallel Server license).

      ../../../../_images/License_Selection_4.png

    7. Folder selection (/usr/local/MATLAB/R2019a).

      ../../../../_images/Folder_Selection_5.png

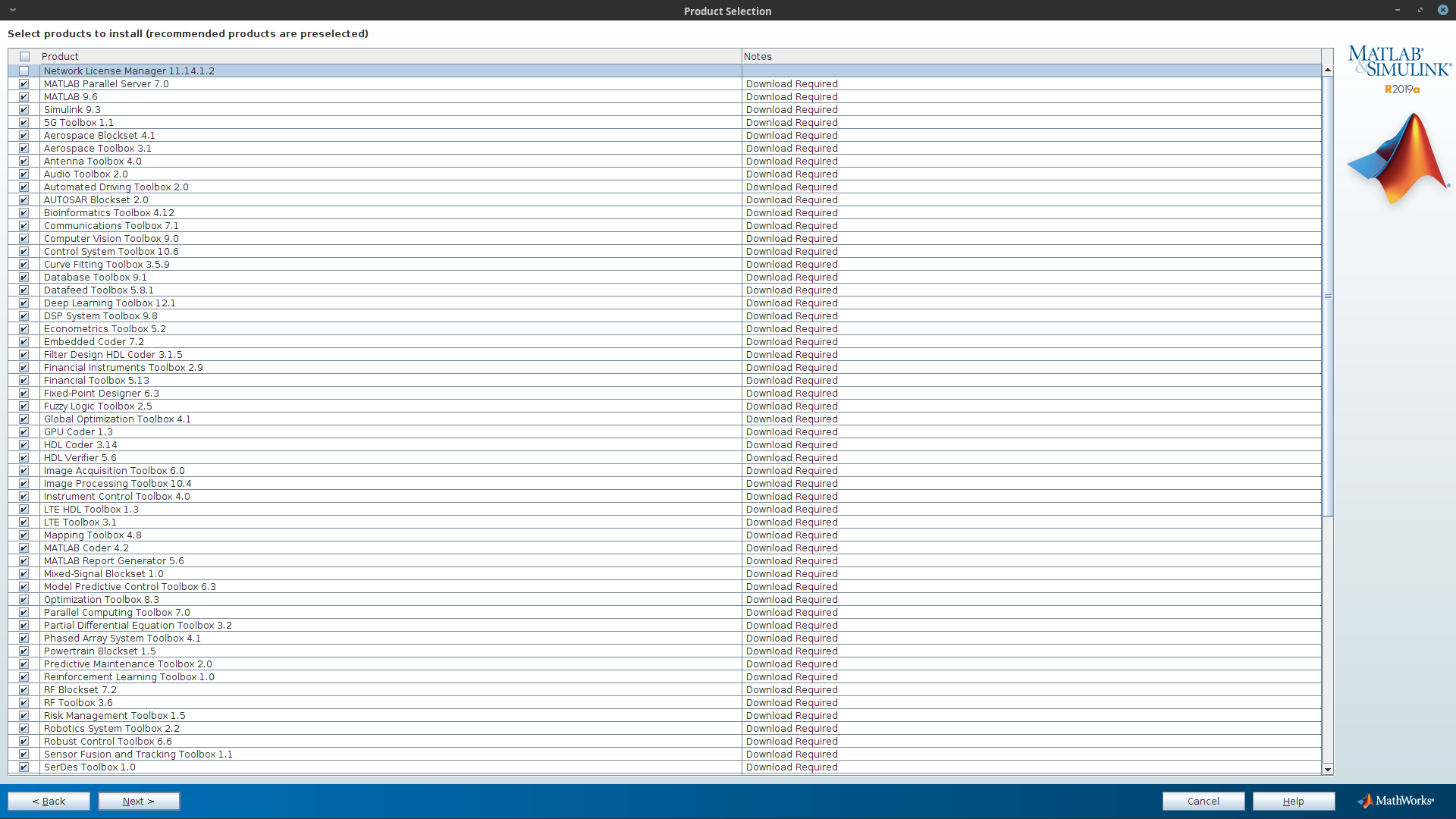

    8. Products selection (License Manager 11.14.1.2).

      ../../../../_images/Product_Selection_LM.png

    9. License file.

      Note

      Login to the MATLAB admin account and download the license file (license.lic) created for the MATLAB Parallel Server (MATLAB Distribuited Computing Engine) and upload it to the License Manager server in the /usr/local/MATLAB/R2019a/etc directory.

      scp license.lic root@<FQDN>:/usr/local/MATLAB/R2019a/etc

      ../../../../_images/License_File_7.png

    10. Finish the installation process.

  4. Configure MLM (FlexLM).

    1. Access the License Manager machine via SSH.

    2. Create a system user without privileges to run MLM.

      # Create a non-root user to launch matlab (security reasons)
## -u uid
## -d homedir
## -r system user
## -s shell (no login user)
useradd -u 110 -c "MDCE" -d /var/tmp -r -s /sbin/nologin matlab

    3. Create the daemon service to execute automatically MLM.

      lm-matlab.service
      [Unit]
Description=MATLAB FlexLM license manager

[Service]
User=matlab
RemainAfterExit=True
ExecStart=/usr/local/MATLAB/R2018a/etc/lmstart
ExecStop=/usr/local/MATLAB/R2018a/etc/lmdown

[Install]
WantedBy=multi-user.target

    4. Configure MLM ports and firewall on the license manager machine.

      Note

      After the installation process, the MLM generates a new license file called license.dat on the /usr/local/MATLAB/R2019a/etc directory with the information given in license.lic file during the installation process and some additional information showing at following.

      • Review the server port (27000) and specify MLM daemon port (53200) at the top of the license file (/usr/local/MATLAB/R2019a/etc/license.dat)

        SERVER <HOSTNAME> <HOSTID> 27000
DAEMON MLM "/usr/local/MATLAB/R2019a/etc/MLM" port=53200
...

        Warning

        If you do NOT have this file, please create it and add the above mentioned information.

      • Open those ports in License manager machine firewall (CentOS 7).

        firewall-cmd --permanent --add-port=53200/tcp
firewall-cmd --permanent --add-port=27000/tcp

    5. Configure both licenses (Parallel Server and MATLAB client with all the toolboxes).

      • Download the license.lic file related with MATLAB client and its toolboxes from the MATLAB administrator account, then open it with a text editor to copy all the INCREMENTS lines.

      • Append all (MATLAB client and its toolboxes) INCREMENTS lines (licensed products) to end of the license.dat on the License Manager server.

        SERVER <FQDN> <HOSTID> 27000
DAEMON MLM "/usr/local/MATLAB/R2019a/etc/MLM" port=53200
# BEGIN--------------BEGIN--------------BEGIN
# MathWorks license passcode file.
# LicenseNo: ########   HostID: ############
#
# R2019a
#
INCREMENT MATLAB_Distrib_Comp_Engine MLM 39 <END_DATE> <NUM_WORKES> \
...
INCREMENT MATLAB MLM 39 <END_DATE> ##################### \
...
INCREMENT SIMULINK MLM 39 <END_DATE> ##################### \
...
... continue ...
...

    6. Enable and start the daemon.

      systemctl enable lm-matlab
systemctl start  lm-matlab

    7. Check the log file to see if everything works properly. /var/tmp/lm_TMW.log

      10:55:13 (lmgrd) -----------------------------------------------
10:55:13 (lmgrd)   Please Note:
10:55:13 (lmgrd)
10:55:13 (lmgrd)   This log is intended for debug purposes only.
10:55:13 (lmgrd)   In order to capture accurate license
10:55:13 (lmgrd)   usage data into an organized repository,
10:55:13 (lmgrd)   please enable report logging. Use Flexera Software LLC's
10:55:13 (lmgrd)   software license administration  solution,
10:55:13 (lmgrd)   FlexNet Manager, to  readily gain visibility
10:55:13 (lmgrd)   into license usage data and to create
10:55:13 (lmgrd)   insightful reports on critical information like
10:55:13 (lmgrd)   license availability and usage. FlexNet Manager
10:55:13 (lmgrd)   can be fully automated to run these reports on
10:55:13 (lmgrd)   schedule and can be used to track license
10:55:13 (lmgrd)   servers and usage across a heterogeneous
10:55:13 (lmgrd)   network of servers including Windows NT, Linux
10:55:13 (lmgrd)   and UNIX.
10:55:13 (lmgrd)
10:55:13 (lmgrd) -----------------------------------------------
10:55:13 (lmgrd)
10:55:13 (lmgrd)
10:55:13 (lmgrd) Server's System Date and Time: Wed Jul 17 2019 10:55:13 -05
10:55:13 (lmgrd) SLOG: Summary LOG statistics is enabled.
10:55:13 (lmgrd) FlexNet Licensing (v11.14.1.2 build 208719 x64_lsb) started on <FQDN> (linux) (7/17/2019)
10:55:13 (lmgrd) Copyright (c) 1988-2017 Flexera Software LLC. All Rights Reserved.
10:55:13 (lmgrd) World Wide Web:  http://www.flexerasoftware.com
10:55:13 (lmgrd) License file(s): /var/tmp/lm_TMW.dat
10:55:13 (lmgrd) lmgrd tcp-port 27000
10:55:13 (lmgrd) (@lmgrd-SLOG@) ===============================================
10:55:13 (lmgrd) (@lmgrd-SLOG@) === LMGRD ===
10:55:13 (lmgrd) (@lmgrd-SLOG@) Start-Date: Wed Jul 17 2019 10:55:13 -05
10:55:13 (lmgrd) (@lmgrd-SLOG@) PID: 14118
10:55:13 (lmgrd) (@lmgrd-SLOG@) LMGRD Version: v11.14.1.2 build 208719 x64_lsb ( build 208719 (ipv6))
10:55:13 (lmgrd) (@lmgrd-SLOG@)
10:55:13 (lmgrd) (@lmgrd-SLOG@) === Network Info ===
10:55:13 (lmgrd) (@lmgrd-SLOG@) Listening port: 27000
10:55:13 (lmgrd) (@lmgrd-SLOG@)
10:55:13 (lmgrd) (@lmgrd-SLOG@) === Startup Info ===
10:55:13 (lmgrd) (@lmgrd-SLOG@) Server Configuration: Single Server
10:55:13 (lmgrd) (@lmgrd-SLOG@) Command-line options used at LS startup: -z -c /var/tmp/lm_TMW.dat
10:55:13 (lmgrd) (@lmgrd-SLOG@) License file(s) used:  /var/tmp/lm_TMW.dat
10:55:13 (lmgrd) (@lmgrd-SLOG@) ===============================================
10:55:13 (lmgrd) Starting vendor daemons ...
10:55:13 (lmgrd) Using vendor daemon port 53200 specified in license file
10:55:13 (lmgrd) Started MLM (internet tcp_port 53200 pid 14120)
10:55:13 (MLM) FlexNet Licensing version v11.14.1.2 build 208719 x64_lsb
10:55:13 (MLM) SLOG: Summary LOG statistics is enabled.
10:55:13 (MLM) SLOG: FNPLS-INTERNAL-CKPT1
10:55:13 (MLM) SLOG: VM Status: 0
10:55:13 (MLM) Server started on <FQDN> for:    MATLAB_Distrib_Comp_Engine
10:55:13 (MLM) MATLAB           SIMULINK        MATLAB_5G_Toolbox
10:55:13 (MLM) AUTOSAR_Blockset Aerospace_Blockset Aerospace_Toolbox
10:55:13 (MLM) Antenna_Toolbox Audio_System_Toolbox Automated_Driving_Toolbox
10:55:13 (MLM) Bioinformatics_Toolbox Communication_Toolbox Video_and_Image_Blockset
10:55:13 (MLM) Control_Toolbox Curve_Fitting_Toolbox Signal_Blocks
10:55:13 (MLM) Data_Acq_Toolbox Database_Toolbox Datafeed_Toolbox
10:55:13 (MLM) Neural_Network_Toolbox Econometrics_Toolbox RTW_Embedded_Coder
10:55:13 (MLM) Filter_Design_HDL_Coder Fin_Instruments_Toolbox Financial_Toolbox
10:55:13 (MLM) Fixed_Point_Toolbox Fuzzy_Toolbox        GPU_Coder
10:55:13 (MLM) GADS_Toolbox     Simulink_HDL_Coder EDA_Simulator_Link
10:55:13 (MLM) Image_Acquisition_Toolbox Image_Toolbox  Instr_Control_Toolbox
10:55:13 (MLM) LTE_HDL_Toolbox LTE_Toolbox      MATLAB_Coder
10:55:13 (MLM) MATLAB_Builder_for_Java Compiler MATLAB_Report_Gen
10:55:13 (MLM) MAP_Toolbox      Mixed_Signal_Blockset MPC_Toolbox
10:55:13 (MLM) MBC_Toolbox      OPC_Toolbox     Optimization_Toolbox
10:55:13 (MLM) Distrib_Computing_Toolbox PDE_Toolbox    Phased_Array_System_Toolbox
10:55:13 (MLM) Powertrain_Blockset Pred_Maintenance_Toolbox RF_Blockset
10:55:13 (MLM) RF_Toolbox       Reinforcement_Learn_Toolbox Risk_Management_Toolbox
10:55:13 (MLM) Robotics_System_Toolbox Robust_Toolbox   Sensor_Fusion_and_Tracking
10:55:13 (MLM) SerDes_Toolbox   Signal_Toolbox  SimBiology
10:55:13 (MLM) SimEvents        SimDriveline    Power_System_Blocks
10:55:13 (MLM) SimHydraulics    SimMechanics    Simscape
10:55:13 (MLM) Virtual_Reality_Toolbox SL_Verification_Validation Simulink_Code_Inspector
10:55:13 (MLM) Real-Time_Workshop Simulink_Control_Design Simulink_Coverage
10:55:13 (MLM) Simulink_Design_Optim Simulink_Design_Verifier Real-Time_Win_Target
10:55:13 (MLM) Simulink_PLC_Coder XPC_Target    SIMULINK_Report_Gen
10:55:13 (MLM) Simulink_Requirements Simulink_Test      SoC_Blockset
10:55:13 (MLM) Excel_Link       Stateflow       Statistics_Toolbox
10:55:13 (MLM) Symbolic_Toolbox System_Composer Identification_Toolbox
10:55:13 (MLM) Text_Analytics_Toolbox Trading_Toolbox Vehicle_Dynamics_Blockset
10:55:13 (MLM) Vehicle_Network_Toolbox Vision_HDL_Toolbox WLAN_System_Toolbox
10:55:13 (MLM) Wavelet_Toolbox SimElectronics
10:55:13 (MLM) EXTERNAL FILTERS are OFF
10:55:14 (lmgrd) MLM using TCP-port 53200
10:55:14 (MLM) License verification completed successfully.
10:55:14 (MLM) SLOG: Statistics Log Frequency is 240 minute(s).
10:55:14 (MLM) SLOG: TS update poll interval is 600 seconds.
10:55:14 (MLM) SLOG: Activation borrow reclaim percentage is 0.
10:55:14 (MLM) (@MLM-SLOG@) ===============================================
10:55:14 (MLM) (@MLM-SLOG@) === Vendor Daemon ===
10:55:14 (MLM) (@MLM-SLOG@) Vendor daemon: MLM
10:55:14 (MLM) (@MLM-SLOG@) Start-Date: Wed Jul 17 2019 10:55:14 -05
10:55:14 (MLM) (@MLM-SLOG@) PID: 14120
10:55:14 (MLM) (@MLM-SLOG@) VD Version: v11.14.1.2 build 208719 x64_lsb ( build 208719 (ipv6))
10:55:14 (MLM) (@MLM-SLOG@)
10:55:14 (MLM) (@MLM-SLOG@) === Startup/Restart Info ===
10:55:14 (MLM) (@MLM-SLOG@) Options file used: None
10:55:14 (MLM) (@MLM-SLOG@) Is vendor daemon a CVD: No
10:55:14 (MLM) (@MLM-SLOG@) Is TS accessed: No
10:55:14 (MLM) (@MLM-SLOG@) TS accessed for feature load: -NA-
10:55:14 (MLM) (@MLM-SLOG@) Number of VD restarts since LS startup: 0
10:55:14 (MLM) (@MLM-SLOG@)
10:55:14 (MLM) (@MLM-SLOG@) === Network Info ===
10:55:14 (MLM) (@MLM-SLOG@) Listening port: 53200
10:55:14 (MLM) (@MLM-SLOG@) Daemon select timeout (in seconds): 1
10:55:14 (MLM) (@MLM-SLOG@)
10:55:14 (MLM) (@MLM-SLOG@) === Host Info ===
10:55:14 (MLM) (@MLM-SLOG@) Host used in license file: <FQDN>
10:55:14 (MLM) (@MLM-SLOG@) Running on Hypervisor: Not determined - treat as Physical
10:55:14 (MLM) (@MLM-SLOG@) ===============================================
...

    8. After that, the license manager service should run without problems, if there is any trouble with the service you can debug this process checking the log file (/var/tmp/lm_TMW.log) to understand what is happening.

      tailf /var/tmp/lm_TMW.log

MATLAB Parallel Server

This entry described the installation process of MATLAB Parallel Server on the cluster and its integration with the License Manager.

  1. Get the online installer using your MATLAB account.

  2. Send the installation file to the master node on your cluster.

    scp matlab_R2019a_glnxa64.zip root@<FQDN>:$installer_path$

  3. Follow next steps to run the MATLAB installer.

    1. Unzip and access the installer files.

      ssh -X root@<FQDN>
cd $installer_path$
mkdir matlab-R2019a
mv matlab_R2019a_glnxa64.zip matlab-R2019a
cd matlab-R2019a
unzip matlab_R2019a_glnxa64.zip

    2. Create the installation directory.

      mkdir -p /share/apps/matlab/r2019a

    3. Execute the installer.

      ./install

      Note

      Troubleshooting

    4. Select the installation method (by MATLAB account).

      ../../../../_images/MathWorks_Installer_1.png

    5. Accept license agreement (yes).

      ../../../../_images/License_Agreement_2.png

    6. Login (username and password).

      ../../../../_images/Log_in_Mathworks_3.png

    7. Select license (Parallel Server license).

      ../../../../_images/License_Selection_4.png

    8. Folder selection (/share/common-apps/matlab/r2019a).

      Note

      Use a shared file system to do an unique installation across all the nodes and both clusters.

      ../../../../_images/Folder_Selection_client.png

    9. Products selection (All products except License Manager 11.14.1.2).

      Note

      MATLAB recommends install every Toolbox available because in this way they can be used by Parallel Server workers.

      ../../../../_images/Product_Selection_6.png

    10. License file (/share/apps/matlab/r2019a/etc).

      Note

      Download and upload the modified license.dat file on the License Manager server to the /share/apps/matlab/r2019a/etc directory on the cluster.

      mkdir -p /share/apps/matlab/r2019a/etc
cd /share/apps/matlab/r2019a/etc
sftp user@<LICENSE_MANAGER_SERVER>
cd /usr/local/MATLAB/R2019a/etc
mget license.dat
      ../../../../_images/License_File_client.png

    11. Wait to finish the installation process.

Intregration with SLURM

To integrate the MATLAB client on the cluster to use SLURM as resource manager you have to follow next steps:

  1. Create a folder called cluster.local in the following path bash:/share/common-apps/matlab/r2019a/toolbox/local/.

    mkdir /share/common-apps/matlab/r2019a/toolbox/local/cluster.local

  2. Copy the MATLAB integration scripts into the above mentioned folder (Scripts).

    scp cluster.local.R2019a.tar.gz <user>@<FQDN>:/path/to/file
mv /path/to/file/cluster.local.R2019a.tar.gz /share/common-apps/matlab/r2019a/toolbox/local/cluster.local
cd /share/common-apps/matlab/r2019a/toolbox/local/cluster.local
tar xf cluster.local.R2019a.tar.gz
rm cluster.local.R2019a.tar.gz

  3. Open the MATLAB client on the cluster to configure the paths for the integration scripts.

    Note

    Add the module file to be able to load MATLAB for the further steps. Please refer to Module file section.

    Warning

    If MATLAB client is installed in a system directory, we strongly suggest to open it with admin privileges, it is only necessary the first time to configure it.

    module load matlab/r2019a
matlab -nodisplay

    >> addpath(genpath('/share/common-apps/matlab/r2019a/toolbox/local/cluster.local'))
>> savepath /share/common-apps/matlab/r2019a/toolbox/local/pathdef.m

    Note

    For more info about the last commands please refer to MathWorks documentation.

Configuring Cluster Profiles

  1. Open again your MATLAB Client (without admin privileges)

    module load matlab/r2019a
matlab -nodisplay

  2. Load the cluster profile and configure it to submit jobs using SLURM via Parallel Server.

    >> configCluster

   >> % Must set TimeLimit before submitting jobs to
           >> % the cluster.

           >> % i.e. to set the TimeLimit
           >> c = parcluster('cluster R2019a');
           >> c.AdditionalProperties.TimeLimit = '1:00:00';
           >> c.saveProfile

    Warning

    The configCluster command should be run only the very first time you configure your MATLAB client. It is NOT necessary to run the command each time.

  3. Custom options

    There are some additional properties you can set in order to get the desired resources with Slurm

    >> c = parcluster()
>> c.AdditionalProperties

ans =

  AdditionalProperties with properties:

             AccountName: ''
    AdditionalSubmitArgs: ''
            EmailAddress: ''
               EmailType: ''
             EnableDebug: 0
                MemUsage: ''
               Partition: ''
            ProcsPerNode: 0
             Reservation: ''
               TimeLimit: ''
                 UseSmpd: 0

    • TimeLimit (mandatory) → Set a limit on the total run time of the job allocation (more info).

      • e.g. c.AdditionalProperties.TimeLimit = ‘3-10:00:00’;

    • AccountName → Change the default user account on Slurm.

      • e.g. c.AdditionalProperties.AccountName = ‘apolo’;

    • ClusterHost → Another way to change the cluster hostname to sumbit jobs.

      • e.g. c.AdditionalProperties.ClusterHost = ‘apolo.eafit.edu.co’;

    • EmailAddress → Get all job notifications by e-mail.

      • e.g. c.AdditionalProperties.EmailAddress = ‘apolo@eafit.edu.co’;

    • EmailType → Get only the desired notifications based on sbatch options.

      • e.g. c.AdditionalProperties.EmailType = ‘END,TIME_LIMIT_50’;

    • MemUsage → Total amount of memory per MATLAB worker (more info).

      • e.g. c.AdditionalProperties.MemUsage = ‘5G’;

    • NumGpus → Number of GPUs to use in a job (currently the maximum possible NumGpus value is two, also if you select this option you have to use the ‘accel’ partition on Apolo II).

      • e.g. c.AdditionalProperties.NumGpus = ‘2’;

    • Partition → Select the desire partition to submit jobs (by default longjobs partition will be used)

      • e.g. c.AdditionalProperties.Partition = ‘bigmem’;

    • Reservation → Submit a job into a reservation (more info).

      • e.g. c.AdditionalProperties.Reservation = ‘reservationName’;

    • AdditionalSubmitArgs → Any valid sbatch parameter (raw) (more info)

      • e.g. c.AdditionalProperties.AdditionalSubmitArgs = ‘–no-requeue –exclusive’;

Troubleshooting

  1. When you ran the MATLAB installer with the command ./install, it prints:

    Preparing installation files ...
Installing ...

    Then a small MATLAB window appears and after a while it closes and prints on prompt:

    Finished

    To solve this problem, you have to find the root cause modifying $MATLABINSTALLERPATH/bin/glnxa64/install_unix script to look the stderror and understand what is happening.

    • At line 918 change this statement eval “$java_cmd 2> /dev/null” to eval “$java_cmd”, by this way you can see the related errors launching the MATLAB installer.
      • e.g. missing library libXtst.so.6

Module file

Module file
#%Module1.0####################################################################
##
## module load matlab/r2019a
##
## /share/apps/modules/matlab/r2019a
## Written by Johan Yepes Rios
##

proc ModulesHelp {} {
     global version modroot
     puts stderr "Sets the environment for using Matlab R2019a\
		  \nin the shared directory /share/common-apps/matlab/r2019a."
}

module-whatis "(Name________) matlab"
module-whatis "(Version_____) r2019a"
module-whatis "(Compilers___) "
module-whatis "(System______) x86_64-redhat-linux"
module-whatis "(Libraries___) "

# for Tcl script use only
set         topdir        /share/common-apps/matlab/r2019a
set         version       r2019a
set         sys           x86_64-redhat-linux

conflict matlab


prepend-path	PATH			$topdir/bin
[1]Wikipedia contributors. (2018, April 13). FlexNet Publisher. In Wikipedia, The Free Encyclopedia. Retrieved 20:44, July 18, 2018, from https://en.wikipedia.org/w/index.php?title=FlexNet_Publisher&oldid=836261861
