License Manager

The License Manager provides a network license support to allow the usage of the different MATLAB features on the clusters (Apolo II and Cronos).

In this case we have two types of licenses, the first one is for the MATLAB Distributed Computing Engine (MDCE) and the second one for MATLAB client with all the toolboxes available.

Next steps will describe the installation and configuration process for the MLM (MATLAB License Manager based on FlexLM [1]):

  1. Get the online installer using your MATLAB account.

  2. Send the installation package to the License Manager server (VM).

    scp matlab_R2018a_glnxa64.zip root@<FQDN>:$installer_path

  3. Follow the next steps to run the MATLAB installer.

    1. Unzip and access the installer files.

      ssh -X root@<FQDN>
cd $installer_path$
mkdir matlab-R2018a
mv matlab-R2018a matlab_R2018a_glnxa64.zip
cd matlab-R2018a
unzip matlab_R2018a_glnxa64.zip

    2. Execute the installer.

      ./install

      Note

      Troubleshooting

    3. Select the installation method (by MATLAB account).

      ../../../../_images/installer.png

    4. Accept license agreement (yes).

      ../../../../_images/terms.png

    5. Login (username and password).

      ../../../../_images/login.png

    6. Select license (MDCE license).

      ../../../../_images/select.png

    7. Folder selection (/usr/local/MATLAB/R2018a).

      ../../../../_images/folder.png

    8. Products selection (License Manager 11.14.1.2).

      ../../../../_images/lm.png

    9. License file.

      Note

      Login to the MATLAB admin account and download the license file (license.dat) created for this feature (MDCE - MATLAB Distributed Computign Engine) and upload it to the License Manager server in the /usr/local/MATLAB/R2018a/etc directory.

      • scp license.lic root@<FQDN>: /usr/local/MATLAB/R2018a/etc
      ../../../../_images/license.png

    10. Finish the installation process.

  4. Configure MLM (FlexLM).

    1. Access the License Manager machine via SSH.

    2. Create a system user without privileges to run MLM.

      # Create a non-root user to launch matlab (security reasons)
## -u uid
## -d homedir
## -r system user
## -s shell (no login user)
useradd -u 110 -c "MDCE" -d /var/tmp -r -s /sbin/nologin matlab

    3. Create the daemon service to execute automatically MLM.

      lm-matlab.service
      [Unit]
Description=MATLAB FlexLM license manager

[Service]
User=matlab
RemainAfterExit=True
ExecStart=/usr/local/MATLAB/R2018a/etc/lmstart
ExecStop=/usr/local/MATLAB/R2018a/etc/lmdown

[Install]
WantedBy=multi-user.target

    4. Configure MLM ports and firewall on the license manager machine.

      • Review the server port (27000) and specify MLM daemon port (53200) at the top of the license file (/usr/local/MATLAB/R2018a/etc/license.dat)

        SERVER <HOSTNAME> <HOSTID> 27000
DAEMON MLM "/usr/local/MATLAB/R2018a/etc/MLM" port=53200
...

      • Open those ports in License manager machine firewall (CentOS 7).

        firewall-cmd --permanent --add-port=53200/tcp
firewall-cmd --permanent --add-port=27000/tcp

    5. Configure both licenses (MDCE and MATLAB client with all the toolboxes).

      Note

      After the installation process, the MLM generates a new file license called license.dat on the /usr/local/MATLAB/R2018a/etc directory with the information given in license.lic file during the installation process (MDCE license).

      • Download the license.lic file related with MATLAB client and its toolboxes from the MATLAB administrator account, then open it with a text editor to copy all the INCREMENTS lines.

      • Append all (MATLAB client and its toolboxes) INCREMENTS lines (licensed products) to end of the license.dat on the License Manager server.

        SERVER <FQDN> <HOSTID> 27000
DAEMON MLM "/usr/local/MATLAB/R2018a/etc/MLM" port=53200
# BEGIN--------------BEGIN--------------BEGIN
# MathWorks license passcode file.
# LicenseNo: ########   HostID: ############
#
# R2018a
#
INCREMENT MATLAB_Distrib_Comp_Engine MLM 39 <END_DATE> <NUM_WORKES> \
...
INCREMENT MATLAB MLM 39 <END_DATE> ##################### \
...
INCREMENT SIMULINK MLM 39 <END_DATE> ##################### \
...
... continue ...
...

    6. Enable and start the daemon.

      systemctl enable lm-matlab
systemctl start  lm-matlab

    7. Check the log file to see if everything works properly. /var/tmp/lm_TMW.log

      8:49:38 (lmgrd) -----------------------------------------------
8:49:38 (lmgrd)   Please Note:
8:49:38 (lmgrd)
8:49:38 (lmgrd)   This log is intended for debug purposes only.
8:49:38 (lmgrd)   In order to capture accurate license
8:49:38 (lmgrd)   usage data into an organized repository,
8:49:38 (lmgrd)   please enable report logging. Use Flexera Software LLC's
8:49:38 (lmgrd)   software license administration  solution,
8:49:38 (lmgrd)   FlexNet Manager, to  readily gain visibility
8:49:38 (lmgrd)   into license usage data and to create
8:49:38 (lmgrd)   insightful reports on critical information like
8:49:38 (lmgrd)   license availability and usage. FlexNet Manager
8:49:38 (lmgrd)   can be fully automated to run these reports on
8:49:38 (lmgrd)   schedule and can be used to track license
8:49:38 (lmgrd)   servers and usage across a heterogeneous
8:49:38 (lmgrd)   network of servers including Windows NT, Linux
8:49:38 (lmgrd)   and UNIX.
8:49:38 (lmgrd)
8:49:38 (lmgrd) -----------------------------------------------
8:49:38 (lmgrd)
8:49:38 (lmgrd)
8:49:38 (lmgrd) Server's System Date and Time: Wed Jul 18 2018 08:49:38 -05
8:49:38 (lmgrd) SLOG: Summary LOG statistics is enabled.
8:49:38 (lmgrd) FlexNet Licensing (v11.14.1.2 build 208719 x64_lsb) started on <FQDN> (linux) (7/18/2018)
8:49:38 (lmgrd) Copyright (c) 1988-2017 Flexera Software LLC. All Rights Reserved.
8:49:38 (lmgrd) World Wide Web:  http://www.flexerasoftware.com
8:49:38 (lmgrd) License file(s): /var/tmp/lm_TMW.dat
8:49:38 (lmgrd) lmgrd tcp-port 27000
...
8:49:38 (lmgrd) (@lmgrd-SLOG@) ===============================================
8:49:38 (lmgrd) (@lmgrd-SLOG@) === LMGRD ===
8:49:38 (lmgrd) (@lmgrd-SLOG@) Start-Date: Wed Jul 18 2018 08:49:38 -05
8:49:38 (lmgrd) (@lmgrd-SLOG@) PID: 19339
8:49:38 (lmgrd) (@lmgrd-SLOG@) LMGRD Version: v11.14.1.2 build 208719 x64_lsb ( build 208719 (ipv6))
8:49:38 (lmgrd) (@lmgrd-SLOG@)
8:49:38 (lmgrd) (@lmgrd-SLOG@) === Network Info ===
8:49:38 (lmgrd) (@lmgrd-SLOG@) Listening port: 27000
...
8:49:38 (lmgrd) (@lmgrd-SLOG@)
8:49:38 (lmgrd) (@lmgrd-SLOG@) === Startup Info ===
8:49:38 (lmgrd) (@lmgrd-SLOG@) Server Configuration: Single Server
8:49:38 (lmgrd) (@lmgrd-SLOG@) Command-line options used at LS startup: -z -c /var/tmp/lm_TMW.dat
8:49:38 (lmgrd) (@lmgrd-SLOG@) License file(s) used:  /var/tmp/lm_TMW.dat
8:49:38 (lmgrd) (@lmgrd-SLOG@) ===============================================
8:49:38 (lmgrd) Starting vendor daemons ...
8:49:38 (lmgrd) Using vendor daemon port 53200 specified in license file
...
8:49:38 (lmgrd) Started MLM (internet tcp_port 53200 pid 19341)
...
8:49:38 (MLM) FlexNet Licensing version v11.14.1.2 build 208719 x64_lsb
8:49:38 (MLM) SLOG: Summary LOG statistics is enabled.
8:49:38 (MLM) SLOG: FNPLS-INTERNAL-CKPT1
8:49:38 (MLM) SLOG: VM Status: 0
...
8:49:38 (lmgrd) MLM using TCP-port 53200
8:49:38 (MLM) License verification completed successfully.
...
8:49:38 (MLM) SLOG: Statistics Log Frequency is 240 minute(s).
8:49:38 (MLM) SLOG: TS update poll interval is 600 seconds.
8:49:38 (MLM) SLOG: Activation borrow reclaim percentage is 0.
8:49:38 (MLM) (@MLM-SLOG@) ===============================================
8:49:38 (MLM) (@MLM-SLOG@) === Vendor Daemon ===
8:49:38 (MLM) (@MLM-SLOG@) Vendor daemon: MLM
8:49:38 (MLM) (@MLM-SLOG@) Start-Date: Wed Jul 18 2018 08:49:38 -05
8:49:38 (MLM) (@MLM-SLOG@) PID: 19341
8:49:38 (MLM) (@MLM-SLOG@) VD Version: v11.14.1.2 build 208719 x64_lsb ( build 208719 (ipv6))
8:49:38 (MLM) (@MLM-SLOG@)
8:49:38 (MLM) (@MLM-SLOG@) === Startup/Restart Info ===
8:49:38 (MLM) (@MLM-SLOG@) Options file used: None
8:49:38 (MLM) (@MLM-SLOG@) Is vendor daemon a CVD: No
8:49:38 (MLM) (@MLM-SLOG@) Is TS accessed: No
8:49:38 (MLM) (@MLM-SLOG@) TS accessed for feature load: -NA-
8:49:38 (MLM) (@MLM-SLOG@) Number of VD restarts since LS startup: 0
8:49:38 (MLM) (@MLM-SLOG@)
8:49:38 (MLM) (@MLM-SLOG@) === Network Info ===
8:49:38 (MLM) (@MLM-SLOG@) Listening port: 53200
8:49:38 (MLM) (@MLM-SLOG@) Daemon select timeout (in seconds): 1
8:49:38 (MLM) (@MLM-SLOG@)
8:49:38 (MLM) (@MLM-SLOG@) === Host Info ===
8:49:38 (MLM) (@MLM-SLOG@) Host used in license file: <FQDN>
...

    8. After that, the license manager service should run without problems, if there is any trouble with the service you can debug this process checking the log file (/var/tmp/lm_TMW.log) to understand what is happening.

      tailf /var/tmp/lm_TMW.log

MATLAB Distributed Computing Server (MDCS)

This entry described the installation process of MDCS on the cluster and its integration with the License Manager.

  1. Get the online installer using your MATLAB account.

  2. Send the installation file to the master node on your cluster.

    scp matlab_R2018a_glnxa64.zip root@<FQDN>:$installer_path$

  3. Follow next steps to run the MATLAB installer.

    1. Unzip and access the installer files.

      ssh -X root@<FQDN>
cd $installer_path$
mkdir matlab-R2018a
mv matlab-R2018a matlab_R2018a_glnxa64.zip
cd matlab-R2018a
unzip matlab_R2018a_glnxa64.zip

    2. Create the installation directory.

      mkdir -p /share/apps/matlab/r2018a

    3. Execute the installer.

      ./install

      Note

      Troubleshooting

    4. Select the installation method (by MATLAB account).

      ../../../../_images/installer.png

    5. Accept license agreement (yes).

      ../../../../_images/terms.png

    6. Login (username and password).

      ../../../../_images/login.png

    7. Select license (MDCE license).

      ../../../../_images/select.png

    8. Folder selection (/share/apps/matlab/r2018a).

      Note

      Use a shared file system to do an unique installtion across all the nodes in the cluster.

      • /share/apps/matlab
      ../../../../_images/folder-cluster.png

    9. Products selection (All products except License Manager 11.14.1.2).

      Note

      MATLAB recommends install every Toolbox available because in this way they can be used by MDCE workers.

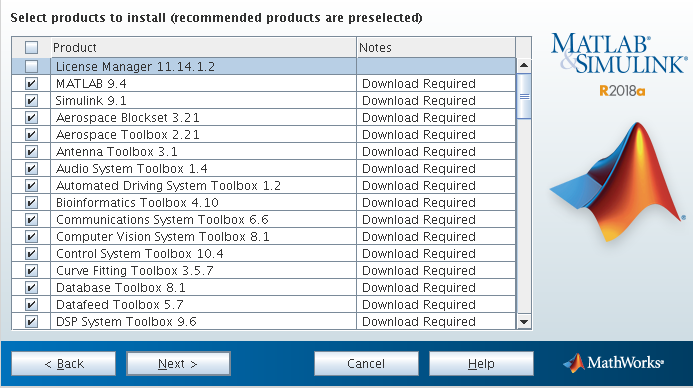

      ../../../../_images/all-products.png

    10. License file (/share/apps/matlab/r2018a/etc).

      Note

      Download and upload the modified license.dat file on the License Manager server to the /share/apps/matlab/r2018a/etc directory on the cluster.

      mkdir -p /share/apps/matlab/r2018a/etc
cd /share/apps/matlab/r2018a/etc
sftp user@<LICENSE_MANAGER_SERVER>
cd /usr/local/MATLAB/R2018a/etc
mget license.dat

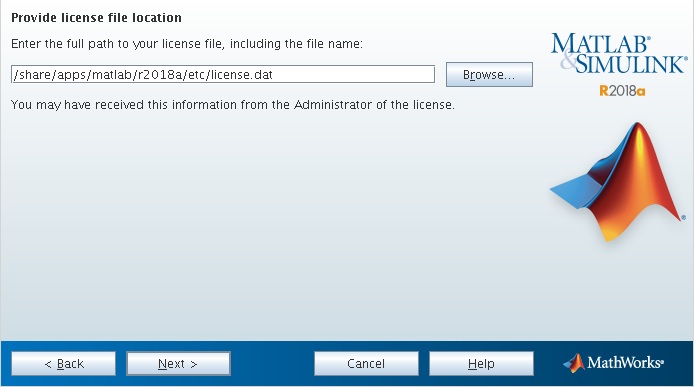

      ../../../../_images/full-license.png

    11. Finish the installation process.

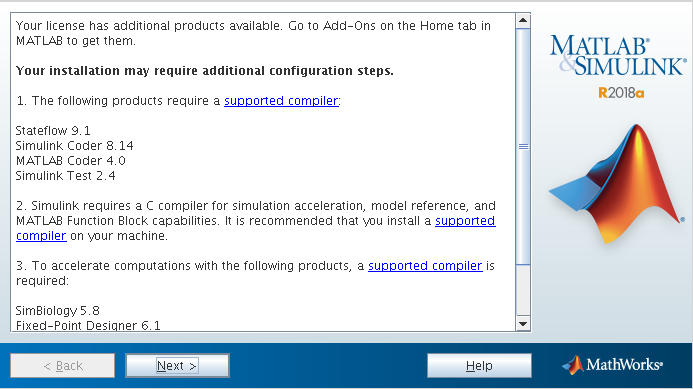

      ../../../../_images/process.png ../../../../_images/compiler.png ../../../../_images/finish.png

Intregration with SLURM

To integrate the MATLAB client on the cluster to use SLURM as resource manager you have to follow next steps:

  1. Add the MATLAB integration scripts to its MATLAB PATH by placing the integration scripts into /share/apps/matlab/r2018a/toolbox/local directory (Apolo II or Cronos).

    Linux

    scp apolo.local.zip or cronos.local.zip <user>@cluster:$path/to/file
mv $path/to/file/matlab-apolo.zip$ /share/apps/matlab/r2018a/toolbox/local
cd /share/apps/matlab/r2018a/toolbox/local
unzip apolo.local.zip or cronos.local.zip
rm apolo.local.zip or cronos.local.zip

  2. Open the MATLAB client on the cluster to configure it.

    (If MATLAB client is installed in a system directory, we strongly suggest to open it with admin privileges, it is only necessary the first time to configure it).

    ssh -X username@<master>
module load matlab/r2018a
matlab
    MATLAB client

  3. Add the integrations scripts to the MATLAB PATH

    • Press the “Set Path” button

      Set path button

    • Press the “Add with Subfolders” button and choose the directory where you unzip the integrations scripts and finally press the “Save” button:

      • /share/apps/matlab/r2018a/toolbox/local/cronos.local \or\ apolo.local

Subfolders

Navigate

Save changes

Configuring Cluster Profiles

  1. Open again your MATLAB Client (without admin privilages)

    MATLAB client

  2. Load the cluster profile and configure it to submit jobs using SLURM via MDCS.

    >> configCluster
>> % Must set TimeLimit before submitting jobs to Cronos

>> % e.g. to set the TimeLimit and Partition
>> c = parcluster('cronos');
>> c.AdditionalProperties.TimeLimit = '1:00:00';
>> c.AdditionalProperties.Partition = 'longjobs';
>> c.saveProfile

  3. Custom options

  • TimeLimit → Set a limit on the total run time of the job allocation (more info).

    • e.g. c.AdditionalProperties.TimeLimit = ‘3-10:00:00’;

  • AccountName → Change the default user account on Slurm.

    • e.g. c.AdditionalProperties.AccountName = ‘apolo’;

  • ClusterHost → Another way to change the cluster hostname to sumbit jobs.

    • e.g. c.AdditionalProperties.ClusterHost = ‘apolo.eafit.edu.co’;

  • EmailAddress → Get all job notifications by e-mail.

    • e.g. c.AdditionalProperties.EmailAddress = ‘apolo@eafit.edu.co’;

  • EmailType → Get only the desired notifications based on sbatch options.

    • e.g. c.AdditionalProperties.EmailType = ‘END,TIME_LIMIT_50’;

  • MemUsage → Total amount of memory per machine (more info).

    • e.g. c.AdditionalProperties.MemUsage = ‘5G’;

  • NumGpus → Number of GPUs to use in a job (currently the maximum possible NumGpus value is two, also if you select this option you have to use the ‘accel’ partition on Apolo II).

    • e.g. c.AdditionalProperties.NumGpus = ‘2’;

  • Partition → Select the desire partition to submit jobs (by default longjobs partition will be used)

    • e.g. c.AdditionalProperties.Partition = ‘bigmem’;

  • Reservation → Submit a job into a reservation (more info).

    • e.g. c.AdditionalProperties.Reservation = ‘reservationName’;

  • AdditionalSubmitArgs → Any valid sbatch parameter (raw) (more info)

    • e.g. c.AdditionalProperties.AdditionalSubmitArgs = ‘–no-requeue’;

Troubleshooting

  1. When you ran the MATLAB installer with the command ./install, it prints:

    Preparing installation files ...
Installing ...

    Then a small MATLAB window appears and after a while it closes and prints on prompt:

    Finished

    To solve this problem, you have to find the root cause modifying $MATLABINSTALLERPATH/bin/glnxa64/install_unix script to look the stderror and understand what is happening.

    • At line 918 change this statement eval “$java_cmd 2> /dev/null” to eval “$java_cmd”, by this way you can see the related errors launching the MATLAB installer.
      • e.g. missing library libXtst.so.6

Module file

Module file
#%Module1.0####################################################################
##
## module load matlab/r2018a
##
## /share/apps/modules/matlab/r2018a
## Written by Mateo Gómez Zuluaga
##

proc ModulesHelp {} {
     global version modroot
     puts stderr "Sets the environment for using Matlab R2018a\
                  \nin the shared directory /share/apps/matlab/r2018a."
}

module-whatis "(Name________) matlab"
module-whatis "(Version_____) r2018a"
module-whatis "(Compilers___) "
module-whatis "(System______) x86_64-redhat-linux"
module-whatis "(Libraries___) "

# for Tcl script use only
set         topdir        /share/apps/matlab/r2018a
set         version       r2018a
set         sys           x86_64-redhat-linux

conflict matlab

prepend-path              PATH        $topdir/bin
[1]Wikipedia contributors. (2018, April 13). FlexNet Publisher. In Wikipedia, The Free Encyclopedia. Retrieved 20:44, July 18, 2018, from https://en.wikipedia.org/w/index.php?title=FlexNet_Publisher&oldid=836261861
